Medical moldable Fracture fiberglass arm and leg splint with CE/ISO13485/ISO9001/FDA in Beijing China

FOB Reference Price:Get Latest Price
$2.70 - $13.00 / Bags | 3000 Bag/Bags (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Properties:
Medical Materials & Accessories
Place of Origin:
Beijing, China
Brand Name:
Kangda, KANGDA
Model Number:
10x76cm, KD312
Place Of Origin:
Beijing China
Useage:
Orthopedics
Name:
Medical splint
Type:
Surgical Supplies
Supply Ability
Supply Ability:
10000000 Piece/Pieces per Year
Packaging & Delivery
Packaging Details
Cartons
Port
Tinjin Xingang
Lead Time :
no later than three weeks
Product description

 Instruction for Fiberglass casting tape

Product structure, performance and scope of application:

Fiberglass casting tape consists of knitted fiberglass fabric that impregnated with a water-activated polyurethane resin.

Fiberglass casting tape compared with the traditional plaster cast that has these distinctive features: high strength, light weight, short hardening time, good air permeability, good X-ray translucency, easy operation, comfortable and safe, less powder during removal. It applies to fixing and supporting the fracture site and the injured joints .It is ideal and upgrade product substitute for traditional plaster bandages.

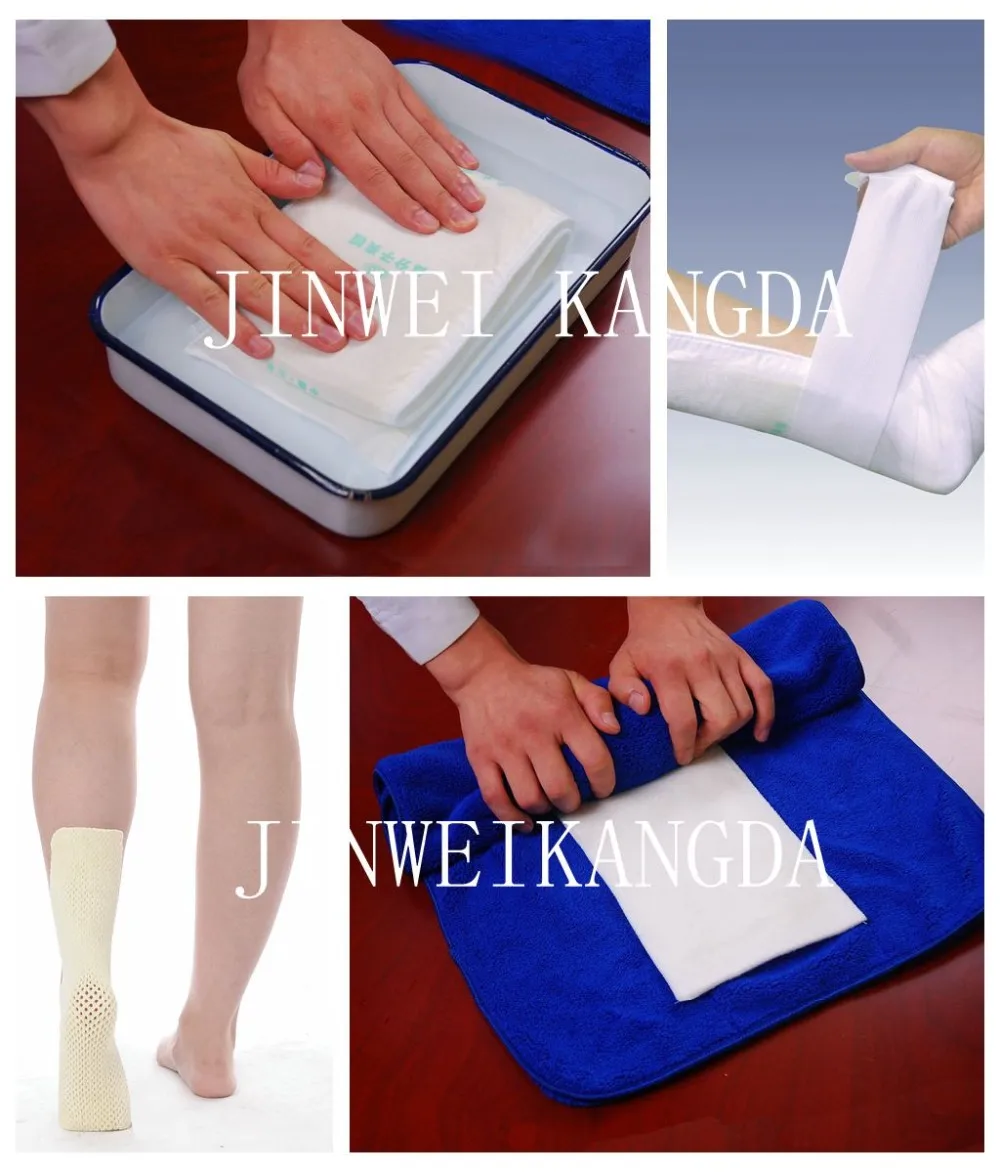

Application Methods:

1. The doctor should wear the surgical gloves.

2. Wrap stockinet and cotton cast padding over the part that needs fixing.

3. Choose the cast of proper size and open the pouch.

4.Immerse the cast in room temperature water (21~24℃) for 2-3 seconds and squeeze it 2-3 times to make it fully saturated then remove the redundant water.

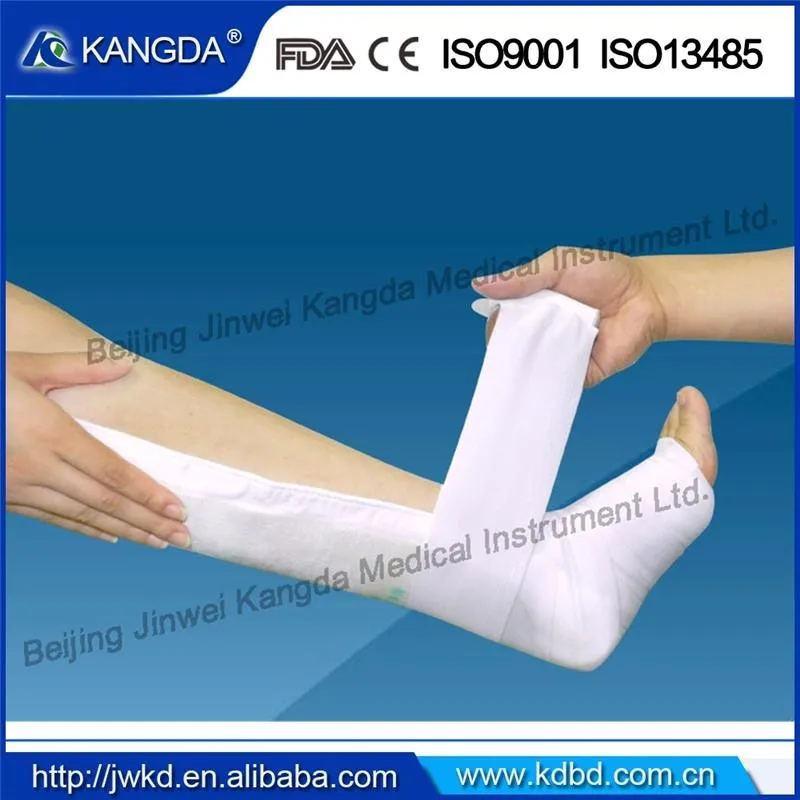

5. Wrap spirally, overlapping the previous layer by 1/2-2/3 width of the cast. To maintain proper tension is very important. If it is too loose, the adhesive force will weaken; if it is too tight, the blood circulation will be disturbed. The strength can be determined by the number of layers. The non-weight bearing part needs 3~4 layers and the weight bearing part needs 5~6 layers.

6. To achieve good adhesive force between layers and make sure close fit with limbs, the cast can be molded by rubbing and smoothing its surface after wrapping. (Molding is easier after touching water by hands.)

7. The operation time is generally within 3 minutes. Setting time is about 3-5 minutes and achieves functional strength in 10 minutes. Make sure the patient not to move the affected region before the product is fully hardened.

8. Remove with electric plaster saw and the user should know well operation not to hurt patients.

The waterproof type of casting tape don’t need to immerse in the water and wrap spirally after shaping. Open the package and pour down the cured rubber in the palm of the hand, spread evenly on the surface of the bandage, and rub repeatedly 4-5 times until the bandage surface is smooth. Other steps are the same with fiberglass casting tape.



Cautions:

◎The affected region must be covered by cotton padding and the doctor should wear medical gloves while applying the cast to avoid the polyurethane resin sticking to skin and clothes. If it sticks to skin, use alcohol cotton balls to erase it at once.

◎Check packing for any damage or holes, that can no longer use when part cast becomes hard.

◎Curing requires suitable temperature. If the temperature is high and the curing time is short; if the water temperature is low and the curing time is long. Too high or too low water temperature will affect the curing effect.

◎Extending soaking or operating time affect the adhesion between the layers and shaping effect.

◎Use at once after opening and shape, when multi-volume casts are used to ensure adhesion between the layers

◎Instruct patient to try not to get wet bandages during treatment, so as to avoid skin irritation.

◎The application of the cast must be under the operation or direction of the qualified doctor.


Storage conditions:
The product should be stored in a ventilated place at 15~30℃ and under 60% RH. The product should be inverted every half year.

Production date, expiry date: Production date refers to product packaging and it should be used in the period of validity. The shelf life is three years.

After Sales Service Commitment: Such as product hardening due to quality problems, can be replaced of the same size by local distributors.

Company Information

Beijing Jinwei Kangda Medical Instrument Ltd. was founded in 2001, which specialize in these products’ research and development, production, sales at home and abroad. We are the supplier of the central materials reserve, China MEHOCO CO., LTD’s export and military material procurement. The company has 24 production lines of casting tape and splint, as well as 20 production lines of body protector, orthosis brace. Jinwei Kangda as the high-tech enterprises has won a number of national patents and quality excellent award of Beijing. All the products have ISO, CE and FDA certificates. Our products are used in thousands of hospitals in China and exported to Europe, Middle East and Southeast Asia and more than 30 countries, we are the largest base of orthopedic casting tape and splint research, manufacture, exportation in Asia.

Sincerely welcome companies at home and abroad contact and cooperate with us to realize complementary advantages, win-win cooperation and harmonious development together. Company address: Room 1406-1409, 1st Building, No.14 Courtyard, South Road of Western 3rd Ring-Road, Fengtai District, Beijing 100073, China.

Packing & Delivery

Box size: 47*23*20cm

Carton size: 70*50*42cm

All the international express and transportation is available with best price and service.


Model
Specification
Package
ST312
7.5cmx30cm
20bagsx6boxes/carton
ST335
7.5cmx90cm
10bagsx6boxes/carton
ST415
10cmx40cm
20bagsx6boxes/carton
ST420
10cmx50cm
10bagsx6boxes/carton
ST430
10cmx76cm
10bagsx6boxes/carton
ST530
12.5cmx76cm
10bagsx6boxes/carton
ST545
12.5cmx115cm
5bagsx6boxes/carton
ST630
15cmx76cm
5bagsx6boxes/carton
ST645
15cmx115cm
5bagsx6boxes/carton
Our Exhibition
Our Certifications

All the products are approved by CE, ISO9001, ISO13485 and FDA
